Lab acrylic desiccator cabinet

1. Basic Product Information

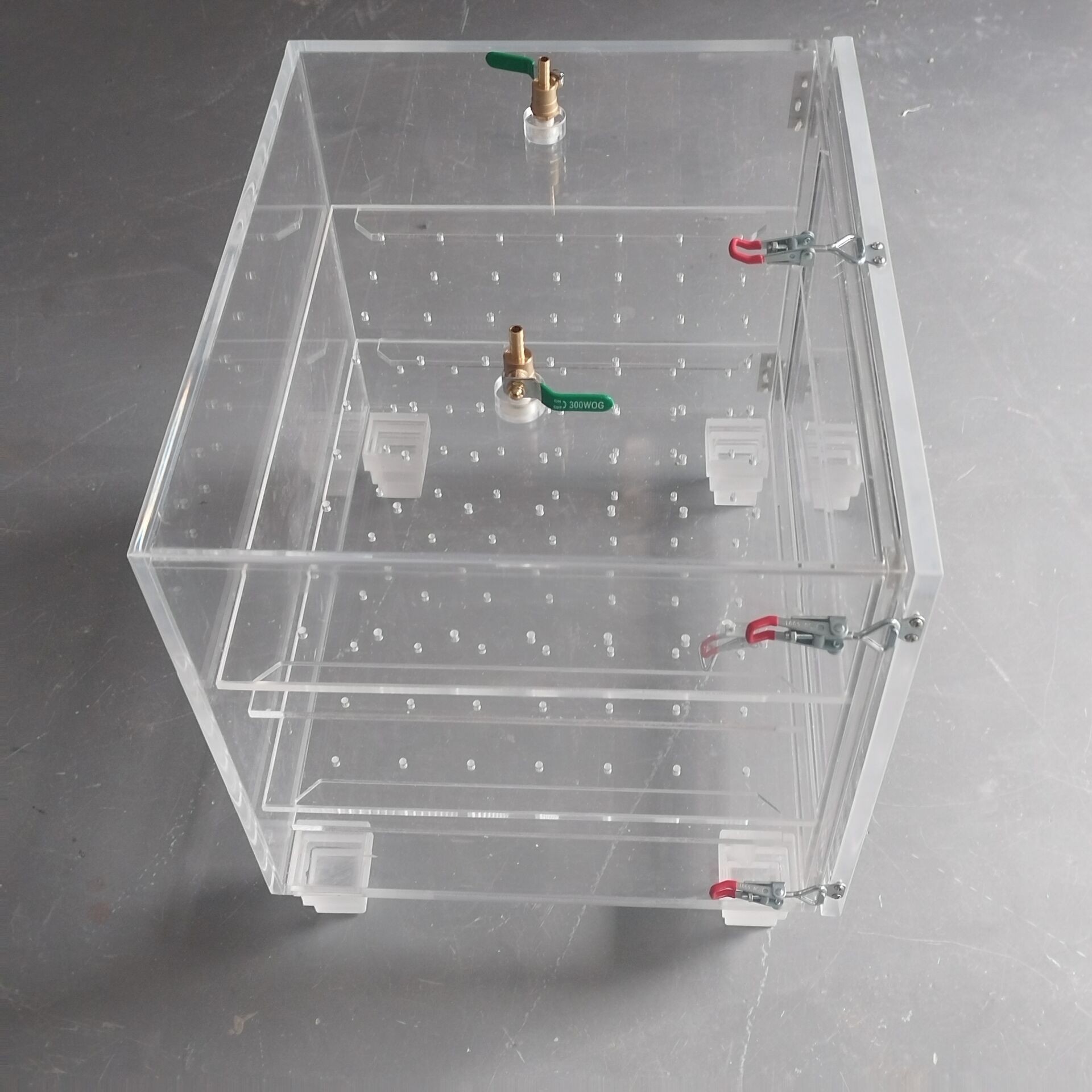

Product Name: Transparent Acrylic Desiccant Dry Box / Laboratory Acrylic Dry Storage Cabinet

Internal Dimension: 300 (Length) × 250 (Width) × 160 (Height) mm

Acrylic Panel Thickness: 8 mm

Opening Style: Side hinged door with locking latches

Internal Configuration: 3 removable layered acrylic storage shelves

2. Material Specification

1. Main Body Material: High-transmittance clear cast acrylic sheet, thickness 8mm

◦ Features: High light transmittance, anti-oxidation, low water absorption, stable chemical property, dust-proof & moisture-proof

2. Valve Fittings: Brass ball valves (300WOG pressure rating) with green ergonomic handles, 2 sets installed (top panel + middle inner panel) for vacuum pumping / nitrogen filling / humidity adjustment

3. Door Locking Parts: 3 sets stainless steel spring toggle latches (red handle), secure sealing after closing the side door

4. Support Feet: Integral molded acrylic anti-slip foot blocks at four bottom corners, heightening the cabinet base for ventilation and avoiding ground moisture

5. Sealing: Built-in silicone rubber sealing strip on door frame to achieve airtight sealing effect

3. Structural & Design Details

1. Cabinet Inner Wall: Uniform micro dot anti-slip texture design, prevents stored samples / equipment from sliding

2. Side Opening Door: Full side panel door, easy access to internal multi-layer shelves, no blind storage area

3. Removable Internal Shelves: 3 independent acrylic layered trays, freely adjustable or detachable according to storage item size, classified storage for lab parts, optical lenses, electronic components, medical consumables

4. Air Valve Layout: One brass valve on top plate for main gas/vacuum control; one valve inside the cabinet for auxiliary air exchange and uniform internal humidity circulation

5. Seam Craft: All acrylic panels bonded by professional solvent adhesive, seamless splicing, strong structural stability, no air leakage under negative pressure

4. Core Functions & Application Scenarios

Main Functions

• Constant low humidity storage, dust isolation, anti-oxidation, anti-moisture, anti-corrosion

• Support vacuum extraction or nitrogen filling via brass valves to create dry inert storage environment

• Fully transparent body, direct visual observation of internal stored items without opening the cabinet

Application Fields

Laboratory precision instruments, optical lenses, electronic circuit boards, biochemical test consumables, medical testing accessories, small precision hardware, camera equipment

5. Performance Parameters

1. Sealing Performance: Airtight structure, can maintain stable low-humidity environment after vacuum/nitrogen filling

2. Load Capacity: Each internal acrylic shelf can bear max 8kg evenly distributed weight

3. Working Temperature Range: -10℃ ~ +60℃

4. Transmittance: ≥92% light transmittance for acrylic panels

5. Pressure Resistance: The brass valve supports working pressure up to 300WOG

6. Package & Customization Options

1. Standard Package: Foam inner padding + carton outer packing, anti-collision and scratch protection during transport

2. Customizable Options:

◦ Custom internal dimensions / acrylic thickness

◦ Adjust number of internal shelves

◦ Replace valve types (vacuum gauge valve, quick connector valve)

◦ Custom printing of company logo / model number on cabinet surface

◦ Add digital humidity display module

7. Product Advantages

1. Fully transparent design, real-time observation of internal goods

2. Side-opening door with 3 heavy-duty latches for reliable airtight sealing

3. Multi-layer removable shelves for flexible classified storage

4. Two brass control valves for convenient vacuum / nitrogen operation

5. Thickened 8mm acrylic sheet, durable and deformation-resistant

6. Anti-slip dot inner wall + bottom support feet for comprehensive protection of stored precision products
