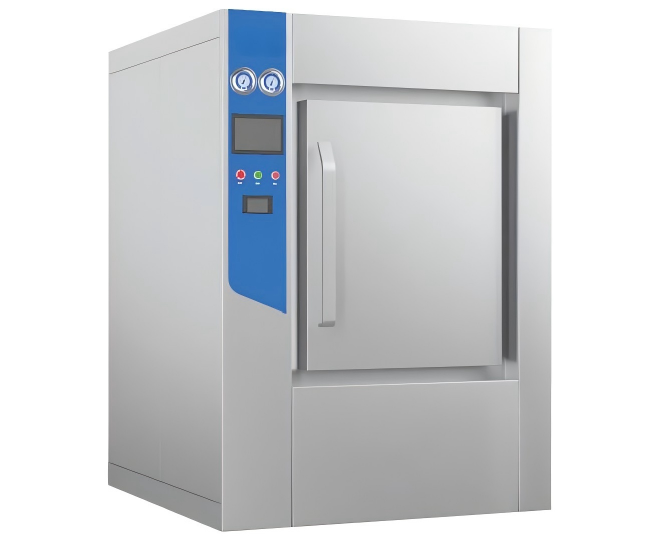

Pulsating vacuum sterilizer

FEATURES

1.The main body and heating jacket of the sterilizer are made of high-quality stainless steel (30408, 316L) materials, and the main body of the vessel is welded by plasma automatic welding,Box body weld 100%RT four grade inspection qualified;
2.The sterilizer has a GMP standard verification port, which is convenient for users to carry out relevant verification;
3.The sealed door adopts electric lifting and compressed gas sealing technology, which is safe interlocking, single door single seal (different areas are isolated from each other);
4.The sterilizer has mechanically forced vacuum and gravity sweeping displacement technology, using saturated steam to pressure sterilize a variety of items;
5.The high temperature gas is condensed or mixed and cooled by the heat exchanger, and vacuum air return system adopts 0.22μm sterilization filter;
6.The control system adopts PLC, touch screen and micro printer. The control system is stable and accurate;
7.It has perfect data recording, printing and saving functions, and can print temperature, time and pressure curves.

Product introduction

RF-MG Pulsating vacuum sterilizers a new type of equipment designed and manufactured according to the requirements of the new GMP
specification,It has the advantages of novel shape, fast heating, simple operation and thorough sterilization ,Widely used in
biological engineering, medical health, laboratory animals, pharmaceutical industry, food industry and other fields,Suitable for
sterilization.
Withstand biological products, utensils, sterile clothing, medical equipment, medical dressings and other items with a temperature
between 100ºC and 136ºC.
